330104-04-09-50-02-00 | Bently Nevada | Proximity Probe
Original price was: $378.00.$259.00Current price is: $259.00.

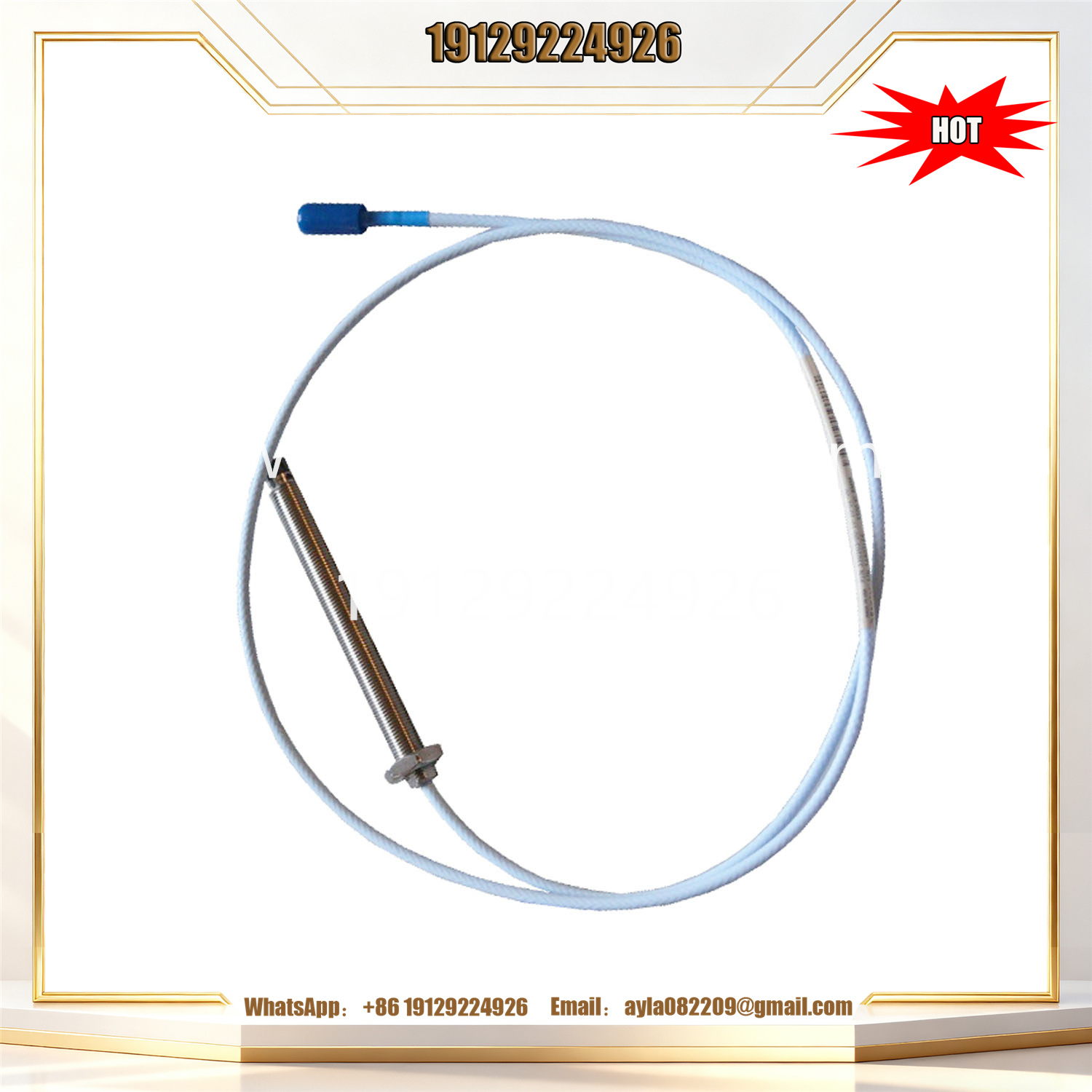

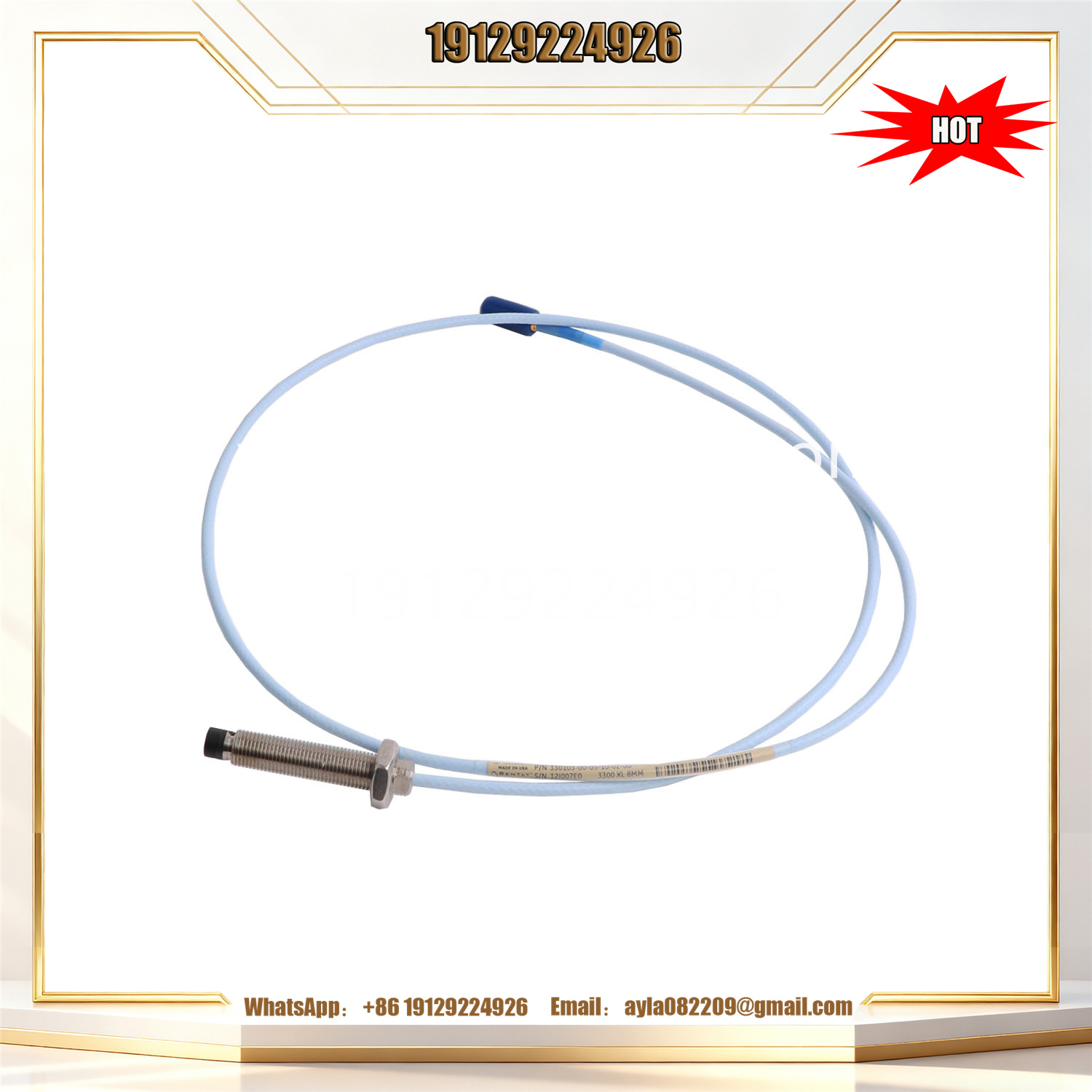

The Bently Nevada 330104-04-09-50-02-00 is an 8 mm proximity probe in the 3300 XL series. It uses eddy – current technology to non – contact measure displacement and vibration in rotating machinery, providing reliable data for machinery condition monitoring.
-
-
Ayla082209@gmail.com
The price is for reference only. Please contact customer service for the actual price.
Description
| Parameter | Details |
|---|---|
| Model | 330104-04-09-50-02-00 |
| Manufacturer | Bently Nevada |
| Product Type | Proximity Probe |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 4 mm |
| Overall Case Length | 90 mm |
| Total Cable Length | 5.0 metres (16.4 feet) |
| Connector and Cable Type | Miniature coaxial click loc™ connector, standard cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Measuring Range | 0 – 2 mm (0 – 80 mils) |
| Linearity | ± 0.5 % of full scale |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Minimum Target Size | 15.2 mm (0.6 in) |
| Minimum Shaft Diameter | 76.2 mm (3 in) |
| Output Signal | – 1 to – 17 Vdc |
| Power Supply | 18 – 30 Vdc |
| Operating Temperature Range | – 40 °C to + 177 °C (- 40 °F to + 351 °F) |
| Storage Temperature Range | – 51 °C to + 177 °C (- 60 °F to + 351 °F) |
| Mounting | Threaded Stud (M10 x 1) |
| Weight | 0.3 kg |
| Agency Approval | Not Required |
| Applications | Shaft Vibration, Axial Displacement, Keyphasor Measurement in Turbines, Compressors, Pumps, Motors, and Generators |
Reviews (0)
About brand
The BENTLY 3500 system is a professional machinery protection and condition monitoring solution widely used in industries like oil and gas, power generation, and petrochemicals. It adopts a modular design, allowing flexible configuration of monitoring modules (e.g., vibration, temperature, and speed modules) to track key operating parameters of rotating equipment such as turbines and compressors. By collecting and analyzing data in real time, it can promptly identify issues like equipment imbalance or bearing wear, trigger alarms or shutdowns when thresholds are exceeded, and effectively prevent unexpected equipment failures to ensure production continuity.
