ABB S-093H 3BHB009885R0004 Phase Module (for ACS6000 Medium-Voltage AC Drive)
Original price was: $25,600.00.$15,600.00Current price is: $15,600.00.
ABB XZC826A102 3BHE036348R0102 Industrial Controller Board
Original price was: $6,520.00.$1,999.00Current price is: $1,999.00.
ABB S-093N 3BHB009885R0021 Core Phase Module (for PCS 6000 Medium-Voltage Frequency Conversion Platform)
Original price was: $29,850.00.$11,990.00Current price is: $11,990.00.

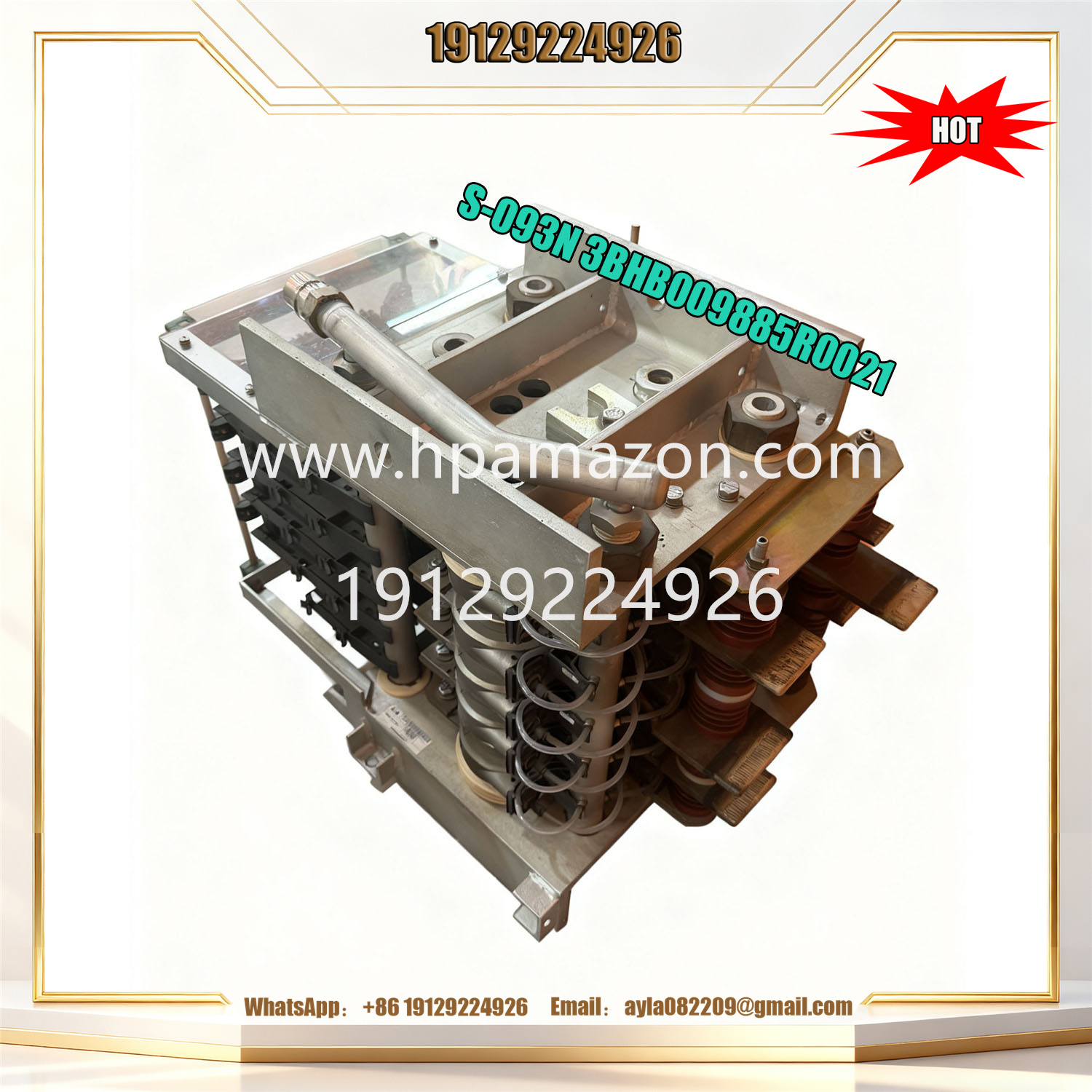

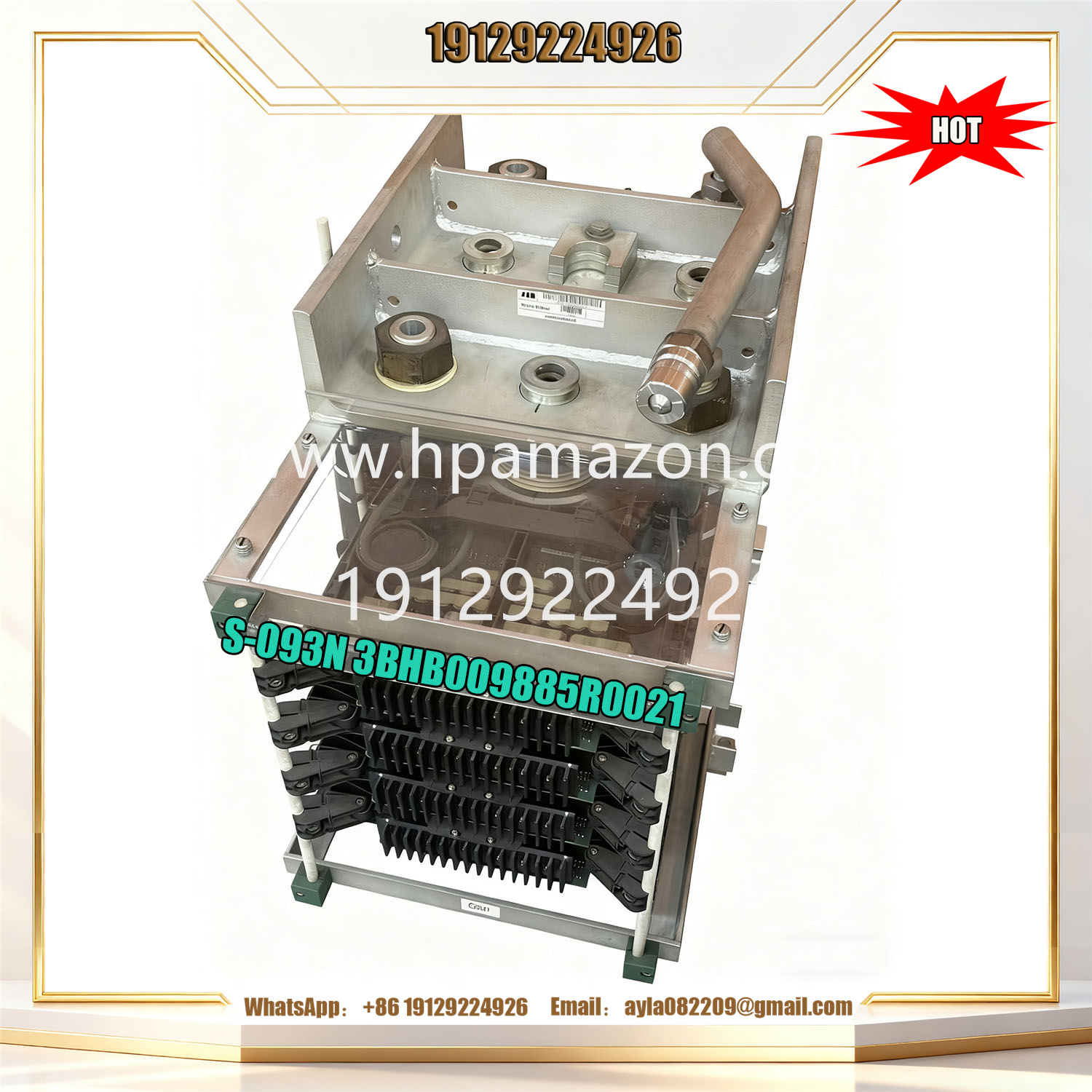

The ABB S-093N (Part No.: 3BHB009885R0021) is a high-power core phase module for the PCS 6000 medium-voltage frequency conversion platform, adopting a 1700V/1800A reverse-conducting IGCT three-level NPC topology to deliver efficient and reliable drive performance for high-voltage motors in industrial applications.
-
-
Ayla082209@gmail.com
The price is for reference only. Please contact customer service for the actual price.
Description
| Parameter | Details |
|---|---|
| Model | ABB S-093N |
| Part Number | 3BHB009885R0021 |
| Manufacturer | ABB |
| Product Type | Core Phase Module (for PCS 6000 Medium-Voltage Frequency Conversion Platform) |
| Core Functions | Delivers high-power output for 3.3 kV or 6 kV motors without step-up transformers; enables bidirectional four-quadrant operation; integrates intelligent diagnostics and multiple protection functions; supports parallel operation for expanded power capacity |
| Rated Voltage | 4500 V DC (maximum DC voltage) |
| Rated Current | 1200 A (typical); 1800 A (maximum for IGCT device) |
| Power Rating | 1.2 – 1.5 MVA per module; up to 120 MVA with parallel configuration (up to 4 modules in parallel) |
| Switching Device | 4500 V reverse-conducting IGCT (Integrated Gate Commutated Thyristor) |
| Topology Structure | Three-level NPC (Neutral Point Clamped), bidirectional four-quadrant |
| Switching Frequency | 0 – 500 Hz (typical operating range: 1 – 2 kHz) |
| Switching Speed | < 2 µs |
| Total Harmonic Distortion (THD) | < 3 % |
| Common-Mode Voltage | < 500 V |
| Efficiency | > 98 % (at 50 Hz full load) |
| Cooling Method | Forced air cooling (standard); deionized water cooling (optional) |
| Control Interface | Fiber optic ST connector (compatible with AC 800PEC controller) |
| Supported Protocols | Profibus DP, Modbus TCP, EtherCAT |
| Parallel Capability | Up to 4 modules in parallel; current imbalance < 3 % |
| Operating Temperature Range | -40°C to +70°C (junction temperature: 125°C) |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% – 95% RH (non-condensing) |
| Protection Rating | IP20 (suitable for cabinet-mounted installation) |
| Dimensions (L × W × H) | 320 mm × 190 mm × 130 mm |
| Weight | 9 – 9.5 kg |
| Mounting Requirements | Cabinet-mounted with ≥ 16 mm² copper busbars; recommended torque for connections: 25 N·m; required contact resistance < 5 µΩ |
| Certifications | CE, UL, IEC 61800-4, RoHS |
| Key Features | High power density (15% higher than previous generations); low stray inductance laminated busbar; dv/dt absorption circuit; nanosecond-level synchronization via fiber optic triggering; hot-swappable support for online maintenance; built-in NTC temperature sensor and comprehensive protection (overload, short circuit, overvoltage, low-voltage ride-through, anti-islanding) |
| System Compatibility | ABB PCS 6000 medium-voltage frequency converter; AC 800PEC controller; 3.3 kV/6 kV high-voltage industrial motors; industrial control systems supporting Profibus DP/Modbus TCP/EtherCAT protocols |
| Applications | High-power motor drives in steel and mining industries; offshore platforms and wind power generation systems; efficient drive systems for chemical and papermaking plants; traction systems for rail transit and marine propulsion |
