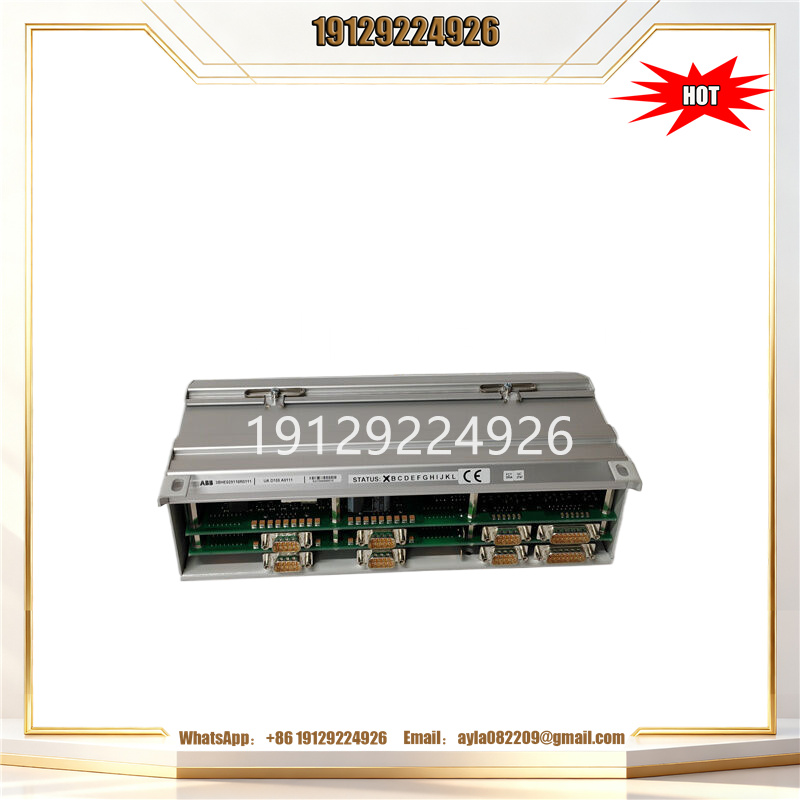

ABB UAD155A0111 3BHE029110R0111 Core Processing Module

Original price was: $5,920.00.Current price is: $2,288.00.

The ABB UAD155A0111 (Part No.: 3BHE029110R0111) is a high-performance core processing module for generator excitation control, integrating precise I/O interfaces and complex control algorithms to ensure stable voltage and reactive power regulation of synchronous generators in industrial power systems.

Ayla082209@gmail.com

The price is for reference only. Please contact customer service for the actual price.

Category: ABB

Description

Parameter	Details
Model	ABB UAD155A0111
Part Number	3BHE029110R0111
Manufacturer	ABB
Product Type	Core Processing Module (for Generator Excitation Control, part of ABB AC800PEC series)
Core Functions	Executes automatic voltage regulation (AVR) and power system stabilizer (PSS) algorithms; precisely adjusts generator excitation current; collects real-time operating data; ensures stable grid connection and fault response
Control Modes	Vector control, V/f control, Direct Torque Control (DTC)
Input Voltage Range	8 – 48 V DC; Compatible with 24 – 120 V DC for specific applications
Input Current	15 mA
Output Voltage Range	10 – 30 V
Maximum Output Current	0.5 A (continuous); Up to 3 A (peak)
Communication Interfaces	Supports Modbus, Profibus, Ethernet (RJ45), RS-232, RS-485; 3 x 10/100 Mbps RJ45 ports, 8 x multi-mode RS-232/422/485 ports
Processor & Memory	High-performance industrial processor; 512 MB memory; Expandable memory for program upgrade and data logging
I/O Capabilities	Multiple digital and analog I/O channels; Supports up to 144 discrete I/O points with extended modules; 6 x 100 kHz high-speed counters
Operating Temperature Range	-25°C to +70°C
Storage Temperature Range	-40°C to +85°C
Relative Humidity	5% – 95% RH (non-condensing)
Protection Rating	IP20
Dimensions (L × W × H)	130.5 mm × 114.3 mm × 45 mm
Weight	0.4 kg (net weight); 1 kg (module weight); 2 kg (shipping weight)
Certifications	Compliant with IEC 61508 and IEC 61511 safety standards; CE certified
Key Features	Strong anti-electromagnetic interference; Redundancy support for high reliability; Modular design for easy maintenance; Seamless integration with ABB DCS/PLC systems; Built-in temperature sensor for environmental monitoring
System Compatibility	ABB AC800PEC control platform, ABB 800xA DCS/PLC systems; Synchronous generators; Industrial power system monitoring equipment
Applications	Excitation control of thermal and hydropower generators; Grid stability control; Black start systems; Self-owned power generation units in large industrial enterprises; Power systems in oil, chemical and steel industries
