PR6426/010-110+CON021 | EMERSON | (Probe + Signal Converter)
Original price was: $3,980.00.$2,410.00Current price is: $2,410.00.

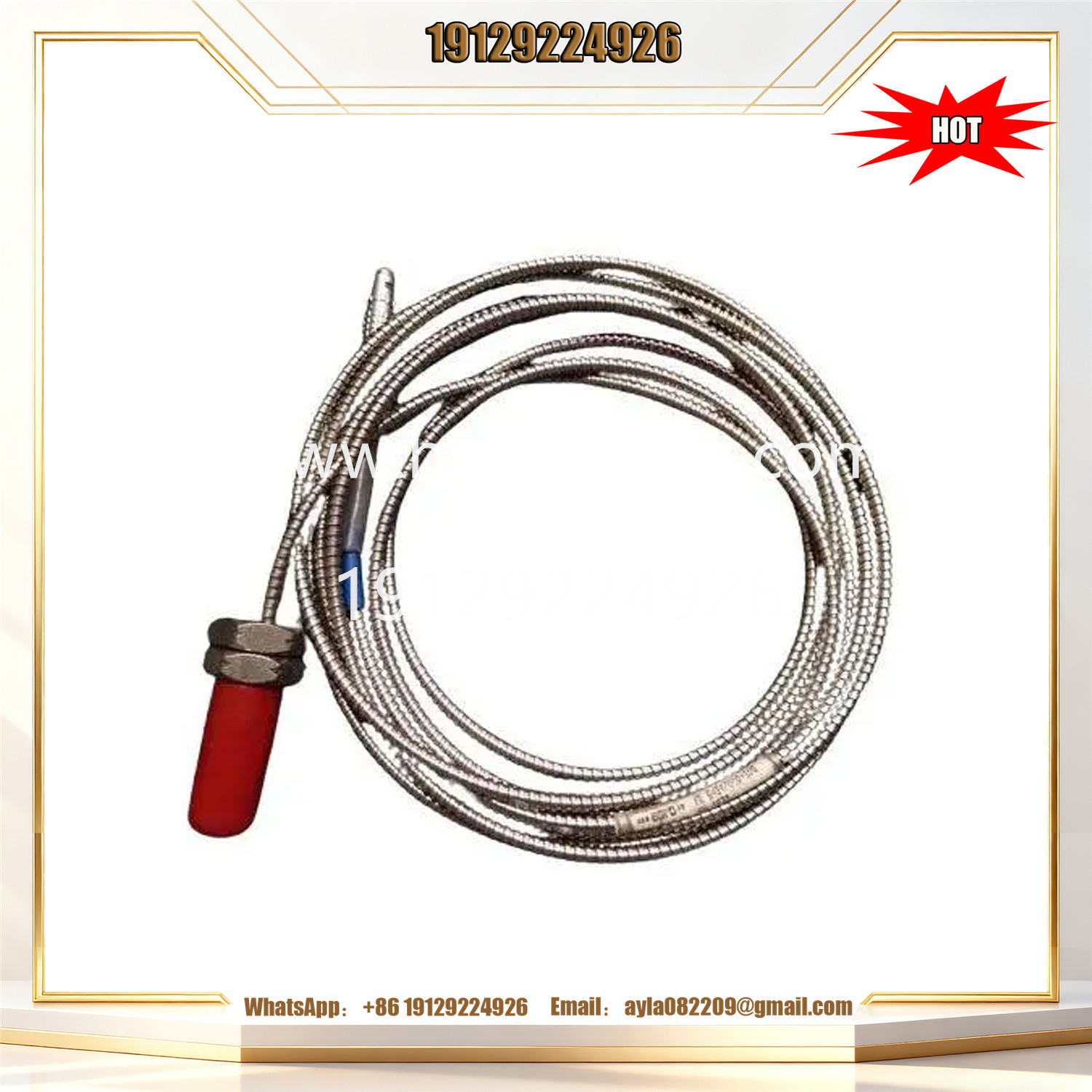

The PR6426/010-110+CON021 is a high-accuracy eddy current sensor system from Emerson, combining a 32mm probe for large-displacement measurements with a signal converter to monitor shaft vibration, position, and eccentricity in critical rotating machinery.
-
-
Ayla082209@gmail.com
The price is for reference only. Please contact customer service for the actual price.
Description
| Parameter | Details |
|---|---|
| Model | PR6426/010-110 + CON021 |
| Manufacturer | Emerson (Epro) |
| Product Type | Eddy Current Sensor System (Probe + Signal Converter) |
| Measurement Principle | Non-contact eddy current technology for displacement/vibration monitoring |
| Probe Sensing Range | ±4.0 mm (static); dynamic up to ±1,000 μm |
| Sensitivity | 2 V/mm (50.8 mV/mil) ±1.5% max |
| Output Signal | Configurable via converter (4-20 mA, voltage output options) |
| Operating Voltage | 18-32 VDC (converter); 12-40 VDC (system) |
| Probe Operating Temperature | -35°C to 175°C (short excursions up to 200°C for <4 hours) |
| Converter Operating Temperature | -30°C to 100°C |
| Process Pressure Rating | 6,500 hPa (94 psi) at sensor head |
| Frequency Range (-3 dB) | 0 to 20,000 Hz (converter) |
| Probe Dimensions (L x D) | 180 mm x 32 mm (including 1m cable) |
| Converter Dimensions (L x W x H) | 90 mm x 60 mm x 30 mm |
| Total Weight | 0.92 kg (probe with 1m cable: 0.8 kg; converter: 0.12 kg) |
| Protection Rating | IP65 (probe); IP20 (converter housing) |
| Shock & Vibration Resistance | 5 g @ 60 Hz (both probe and converter) |
| Certifications | CE, ATEX (EN 60079-0/11), IECEx, CSA (CAN/CSA-C22.2) |
| Cable Specifications | 2-conductor shielded cable (max temperature 200°C) |
| Applications | Shaft displacement/vibration monitoring in turbines, compressors, pumps, and large rotating machinery with shaft diameter ≥200 mm |
Reviews (0)
Shipping & Delivery
Related products

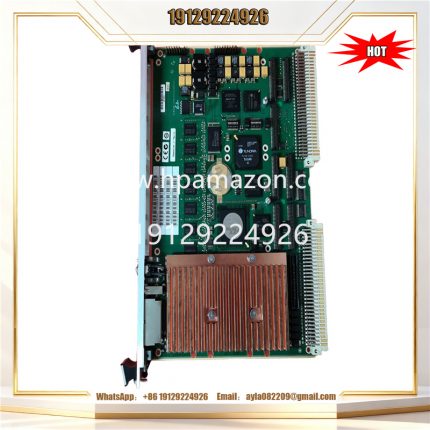

MVME7100-0173 | EMERSON | Rugged Industrial Single-Board Computer
