WOODWARD 8446-1019 Industrial Control Module
Original price was: $3,399.00.$2,066.00Current price is: $2,066.00.
WOODWARD 5501-467 Simplex Power Board
Original price was: $5,600.00.$3,150.00Current price is: $3,150.00.

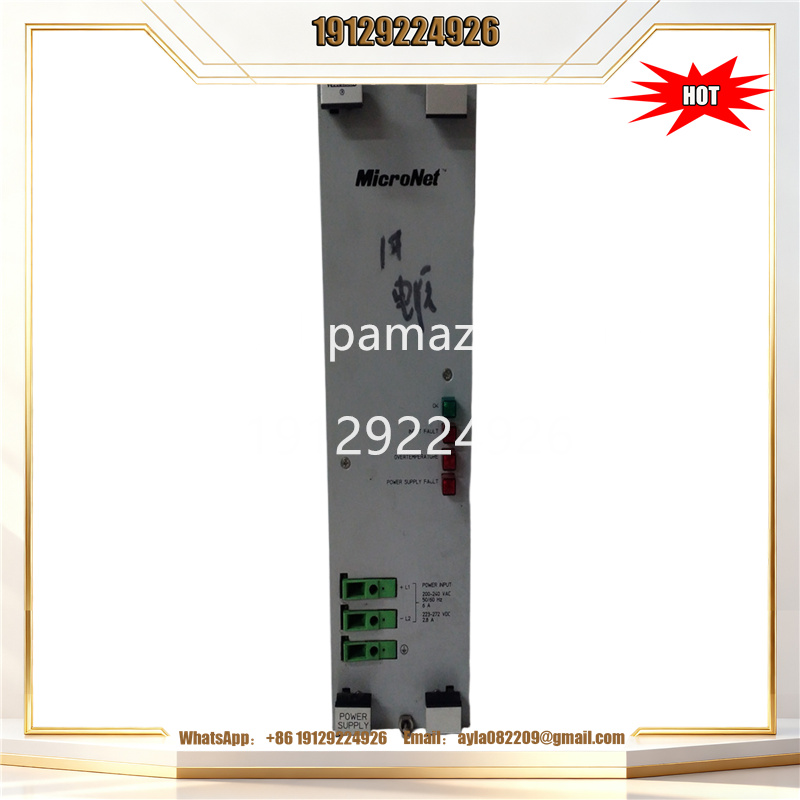

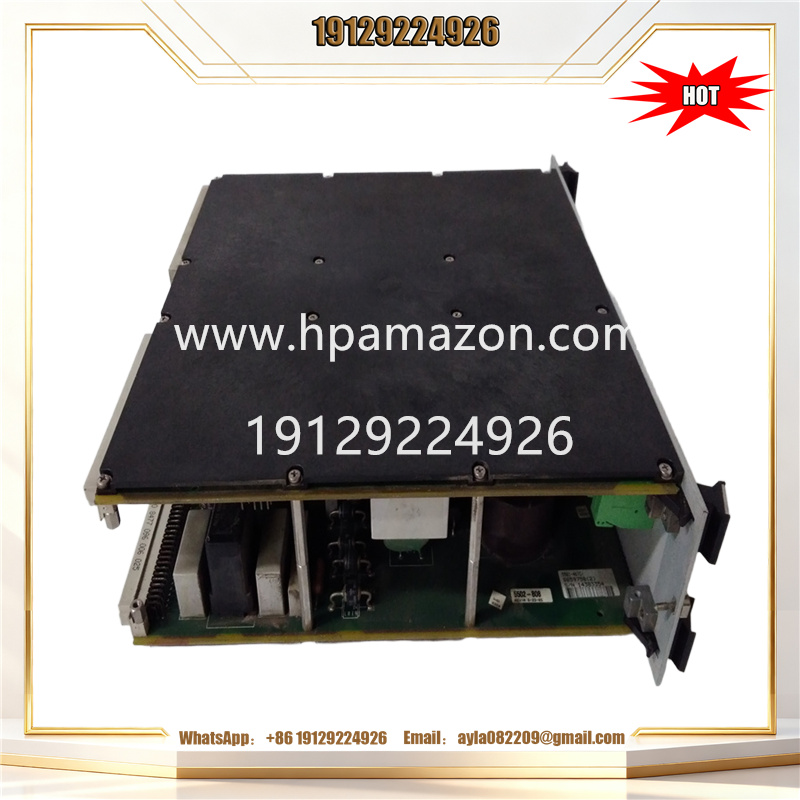

The WOODWARD 5501-467 is a Simplex Power Board designed for MicroNet control system chassis, providing stabilized 5 VDC output with 220 VAC/VDC input compatibility, high current capacity, and integrated fault monitoring for industrial turbine and automation applications .
-
-
Ayla082209@gmail.com
The price is for reference only. Please contact customer service for the actual price.
Description
| Parameter | Details |
|---|---|
| Model | WOODWARD 5501-467 |
| Manufacturer | Woodward Inc. |
| Product Type | Simplex Power Board (Power Supply Module) |
| Core Functions | 220 VAC/VDC to 5 VDC power conversion; stable power distribution for control systems; fault detection (input/power/overtemperature); status indication via LEDs |
| Input Voltage | 220 VAC/VDC; Operating range: 180-264 VAC (47-63 Hz) |
| Output Voltage | 5 VDC |
| Maximum Output Current | 32 A @ 55°C; 28 A @ 60°C; 22.0 A @ 65°C |
| Maximum Input Power | 1250 VA (MicroNet Plus chassis); 1062 VA (MicroNet Simplex chassis) |
| Maximum Input Current | 6.7 A (MicroNet Plus chassis); 5.9 A (MicroNet Simplex chassis) |
| High Voltage DC Tolerance | 225 VDC for 7 ms (main power supply, Simplex chassis) |
| Status Indicators | 4 LEDs (OK, Input Fault, Power Supply Fault, Over Temperature Fault) |
| Chassis Compatibility | MicroNet Simplex chassis; MicroNet Plus chassis (functions in simplex mode only) |
| Power Consumption | Dependent on connected load (peak ≤ 1.0 A @ 24 VDC for auxiliary circuits) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -50°C to +90°C |
| Relative Humidity | 0% – 95% RH (non-condensing) |
| Vibration Resistance | Compliant with IEC 60068-2-6 |
| Shock Resistance | Compliant with IEC 60068-2-27 |
| Sound Level | < 70 dBA |
| Altitude Rating | Up to 4000 m |
| Protection Rating | IP20 (cabinet-mounted) |
| Dimensions (W × H × D) | 300 mm × 200 mm × 250 mm |
| Weight | 0.8 kg (module alone); 21.77 kg (when installed in chassis) |
| Mounting Type | Chassis-mounted (MicroNet series chassis) |
| Wiring Requirements | 14 AWG (2.5 mm²) wire; 60°C rating |
| Certifications | Compliant with industrial control equipment standards |
| Key Features | Wide input voltage range; temperature-dependent current scaling; integrated fault diagnostics; high-voltage tolerance |
| System Compatibility | Woodward MicroNet Simplex/Plus control systems; turbine governors; industrial automation controllers |
| Applications | Gas/steam turbine control systems; generator set power supply; oil & gas process automation; industrial DCS power modules |
