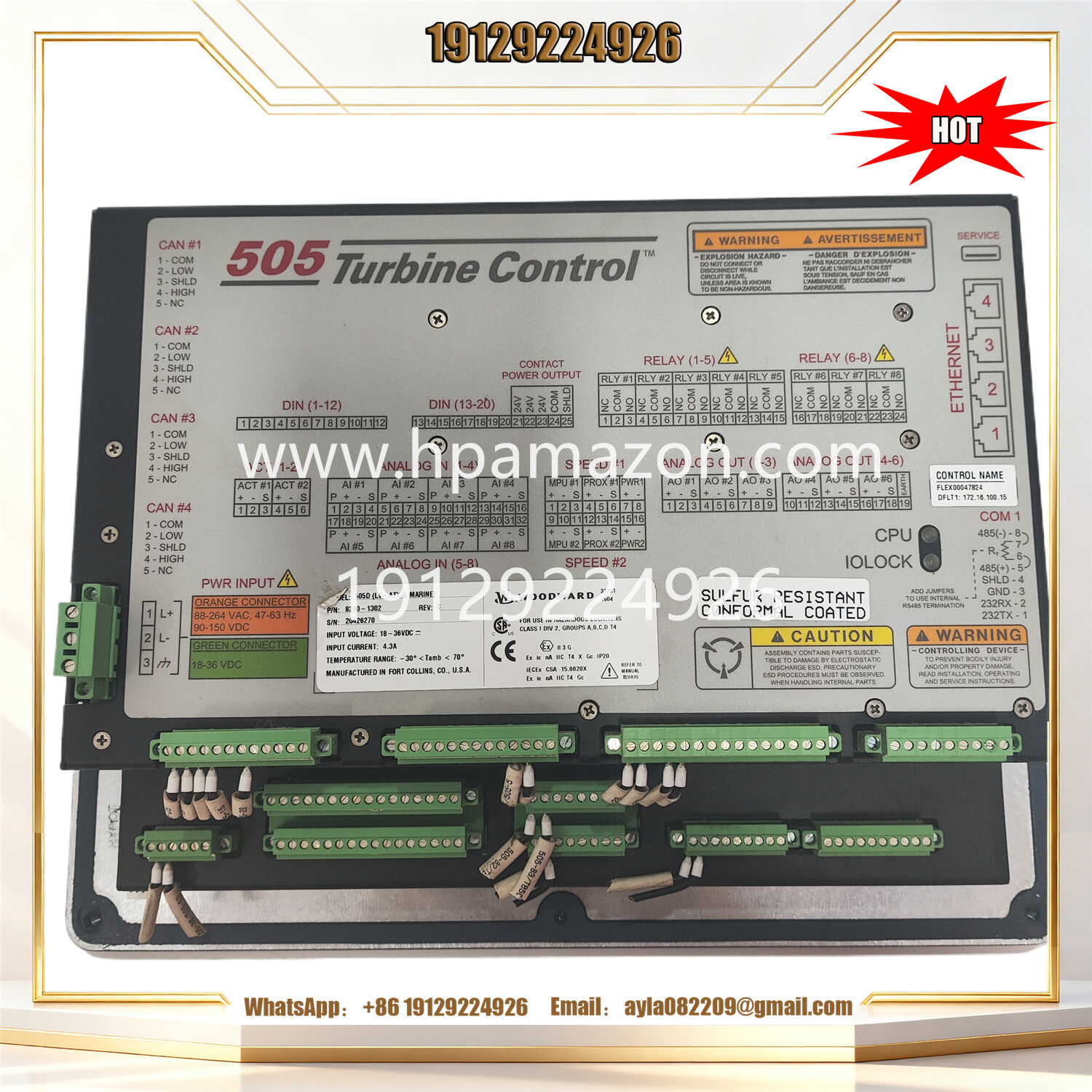

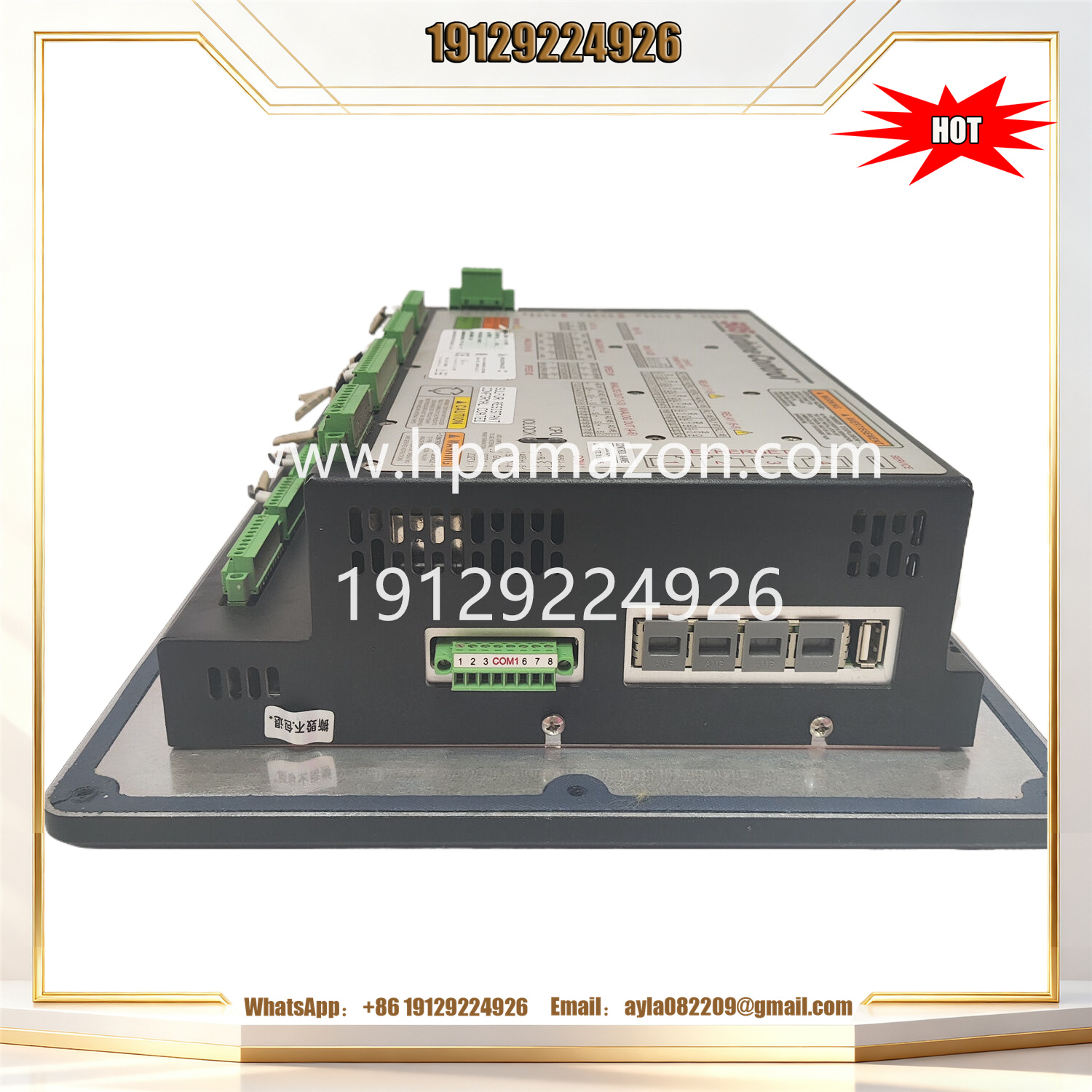

WOODWARD 8200-1302 Digital Governor Module
Original price was: $5,980.00.$4,200.00Current price is: $4,200.00.
The WOODWARD 8200-1302 is a marine/ATEX-compliant digital governor module for turbine control, featuring integrated HMI, redundant speed inputs, and multi-protocol communication for precise speed/load regulation in harsh industrial and marine environments.
-
-
Ayla082209@gmail.com
The price is for reference only. Please contact customer service for the actual price.
Description
| Parameter | Details |
|---|---|
| Model | 8200-1302 |
| Manufacturer | Woodward, Inc. |
| Product Type | Digital Governor Module (Turbine Control with Integrated HMI) |
| Core Control Functions | Speed regulation, load sharing, critical velocity avoidance, automatic start sequencing |
| Inputs | 2 redundant speed inputs (magnetic pickup/eddy current/proximity probe); 8 analog inputs (configurable for 27 functions); 20 contact inputs (4 default for speed setpoints/reset) |
| Outputs | 2 x 4-20 mA control outputs; 8 x Type C relay contact outputs; 0-10 V DC auxiliary output |
| Communication Interfaces | RS-485 (Modbus RTU); optional Ethernet/CANbus |
| Power Supply | 18-32 V DC (LVDC, marine/ATEX compliant) |
| Power Consumption | 2.5 W |
| Control Accuracy | High-precision PID control algorithms |
| Response Time | ≤ 20 ms (dynamic response) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | Not specified (assumed 5%-95% RH non-condensing for industrial modules) |
| Protection Rating | IP54 |
| Dimensions (W x H x D) | 140 mm × 165 mm × 57 mm |
| Weight | 1.2 kg |
| Mounting Type | Not explicitly specified (industrial panel/cabinet mount typical for governors) |
| Certifications | ATEX, IACS UR E10 (commercial marine), EN 61000-6-2 |
| Key Features | Emergency trip key; RTC time-stamped alerts/trips; zero speed detection; 3 operation modes (configuration/operation/calibration); built-in overspeed/low oil pressure protection |
| System Compatibility | Gas turbines, steam turbines, diesel engines |
| Applications | Marine propulsion systems, industrial power generation, oil & gas turbine control, process industry prime movers |
